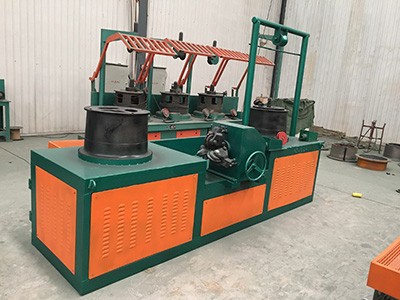

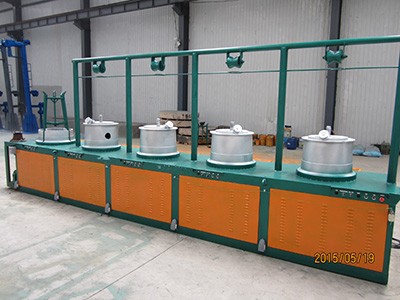

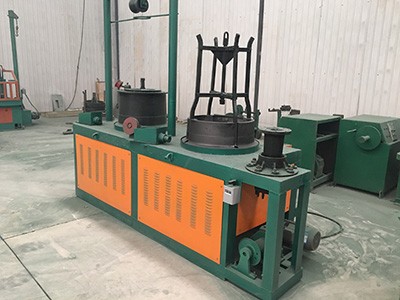

Pulley type wire drawing machine

Large vertical wire drawing machine, also known as pulley wire drawing machine, stainless steel spring wire is widely used in various fields of the national economy, such as automobiles, electronics, daily necessities, switches, machinery, metallurgy, light industry, etc. The annual growth rate of China's spring product market has always maintained a double-digit high-speed growth trend. China has become one of the important investment, production, and consumption markets for global spring technology products, and has gradually formed a spring industry market with huge development potential.
application area
Widely used for wire drawing in factories and mines such as steel wires, cables, building components, galvanized iron wire, metal mesh, and nail making.
Composition structure
It is composed of a main gearbox, a mold box, a track wheel frame, a lifting frame, and an electrical control system. Each wire drawing drum is driven by a motor through a gear coupling to reduce the speed of two levels of cylindrical gears with different speed ratios, so that the drum rotates and works. The wire drawing drum is vertical and installed on the cover box, and the gear pair is lubricated by immersion oil. The inner wall equipment of the drum is equipped with a cooling water spray device to reduce the residual heat on the surface of the drawn steel wire transmission line drum. The drawing die is immersed in cooling water to lower the working temperature of the die.
