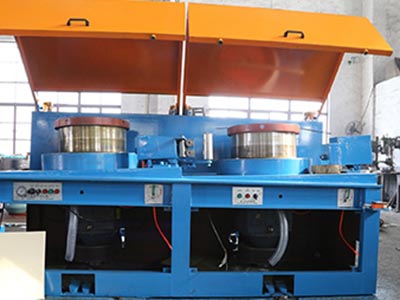

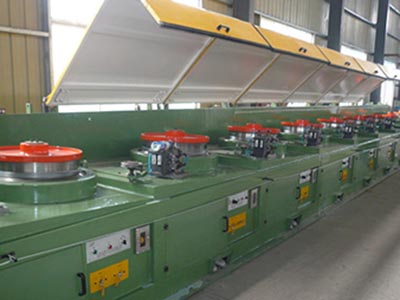

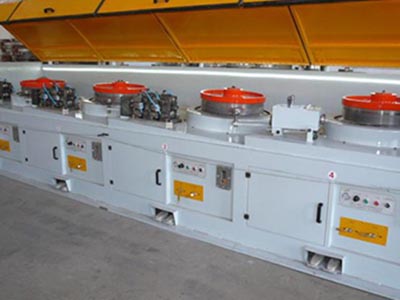

Straight wire drawing machine
|
|
|
|
|
|
| Inlet Diameter | 5.5-6.5mm |
| Outlet Diameter | 1.8mm-2.5mm |
| Brand Name | QingYun |
| Voltage | 380V or Customized |
| Core Components | Motor, PLC |
| Max. wire feeding speed | 16.66m/ s (1000 m/ min) |
| Motor | 22KW |
| Mould size | 40mm* 25 |
| Pot arrangement | Upright |
| Machine Type | Fully automatic |
| Key Machines | Drawing Machine, Pay-off, Descaler, Take-up |
| Dimension(L*W*H) | 26.3*2.5*3 mtrs |
| After-sales Service Provided | Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
| Video outgoing-inspection | Provided |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Construction works |
Straight wire drawing machine is a common type of metal wire processing equipment. It can stretch high, medium, and low-carbon steel wires, stainless steel wires, copper wires, alloy copper wires, aluminum alloy wires, etc. Accurate meter measurement with an error of 0.1%; Fixed length automatic deceleration and parking; Broken line detection and automatic parking; Arbitrary drum forward and backward movement and left and right linkage; Display of various fault information and handling information; Various sports information monitoring. And it supports any mold matching process, with automatic compensation through tuning after mold wear, making it less prone to wire breakage. And it is equipped with a jumper device that can cut and pull the drum freely to adapt to different processes.
main features

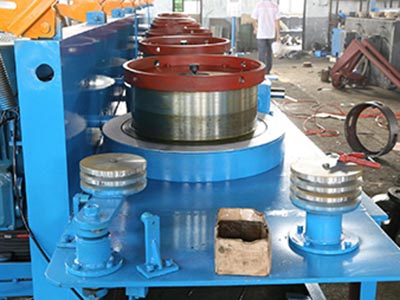

The drum adopts narrow slit water cooling, and the drawing die adopts direct water cooling; Good cooling effect;
Adopting a first stage strong narrow V-belt and a first stage planar secondary enveloping worm gear pair transmission, the transmission efficiency is high and the noise is low;
Adopting a fully enclosed protective system, with good safety;
Adopting air tension tuning for smooth drawing;
Adopting AC frequency conversion control technology (or DC programmable control system), screen display, high degree of automation, easy operation, and high quality of drawn products.
Suitable for drawing materials
Welding rod; Welding wire (gas shielded welding wire, submerged arc welding wire, flux cored welding wire, etc.); Steel wire (high, medium, and low-carbon steel wire, stainless steel wire, prestressed steel wire, tire steel wire, rubber hose steel wire, spring steel wire, steel curtain wire, etc.); Electrical wiring (aluminum clad steel wire, copper wire, aluminum wire, etc.); Various metal wires such as alloy wires.
