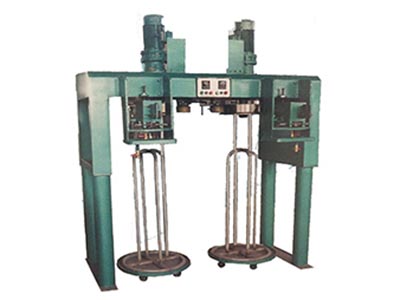

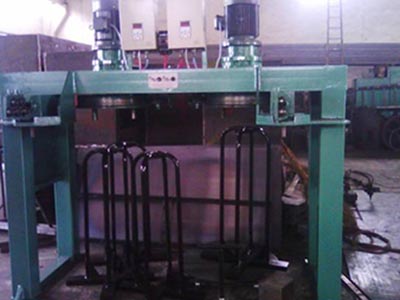

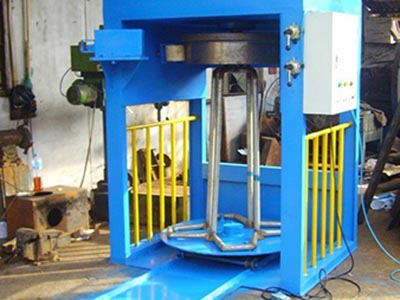

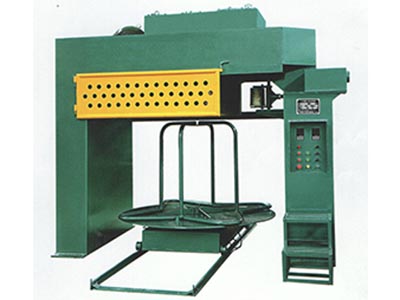

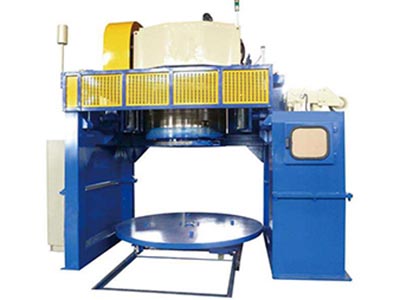

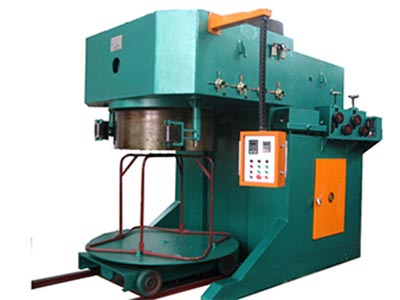

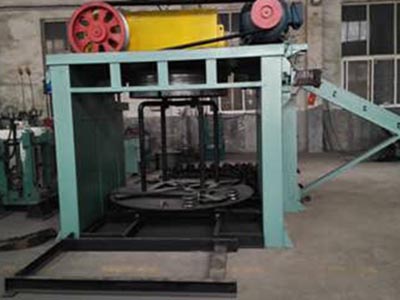

Inverted wire drawing machine

Introduction to Inverted Wire Drawing Machine Products
1. Purpose: The inverted wire drawing machine is an equipment developed for drawing medium and low-carbon steel wires, stainless steel wires, irregular steel wires, and non-ferrous metal coarse and medium diameters in a sliding free manner. It is suitable for the standard parts industry, supermarket shelf manufacturing industry, and steel wire processing enterprises. Machine features: The transmission system adopts a first level strong narrow V-belt combination hard tooth surface reducer or swing ring reducer; The take-up reel is significant; Forced air cooling of the drum; Pneumatic pressure wheel; The offline coil has independent power and the diameter of the coil can be adjusted; AC variable frequency speed regulation, convenient machine operation, safe and reliable, energy-saving of over 30%.
2. Working principle: The motor drives the drum placed on the output shaft of the gearbox to rotate through the belt pulley and three-stage gear transmission, and pulls the wire to complete the drawing. After being pulled, the wire is guided into the wire rack through the lead roller, and the wire rack rotates synchronously with the drum.
3. Structural features: This equipment is an inverted wire drawing machine, with the drum inverted at the lower part of the gearbox. The drawn wire can be directly collected to the wire drop frame, thereby achieving heavy collection of large coils.
4. Equipment composition: This equipment mainly consists of a frame, a gearbox, a drum, a wire drop frame, a trolley, a pneumatic system, an AC variable frequency speed control system, and an electric motor.
